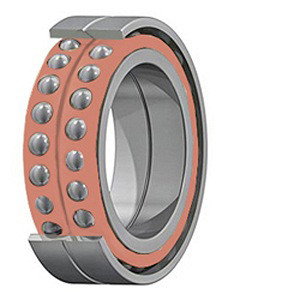

SKF BTM 100 BTN9/DBAVQ496 Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF BTM 100 BTN9/DBAVQ496 Precision Ball Bearing Specifications
-
Bore:3.937 Inch / 100 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Precision Ball Bearings
-
Contact Angle:40 Degree
-
EAN:7316576743368
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword 3:Thrust
-
Keyword String:Ball Angular Contact Thrust
-
Long Description:100MM Bore; 150MM Outside Diameter; 45MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 40 Degree Contact Angle; Polyamide Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:BTM 100 BTN9/DBAVQ496
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Duplex-Back to Back
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / High Speed Design
-
Outside Diameter:5.906 Inch / 150 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Light
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:2.77
-
Weight / LBS:6.116
-
Width:1.772 Inch / 45 Millimeter
Help us improve our product information
