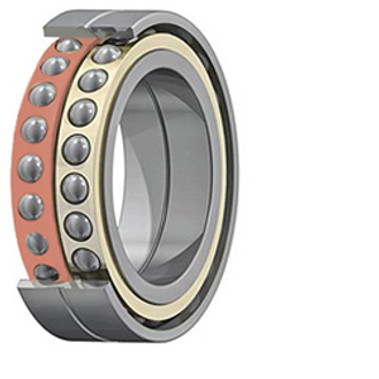

SKF BA2B 459422 Precision Ball Bearing

Specs

Bore:

4.331 Inch / 110 Millimeter

Brand:

SKF

Cage Material:

Phenolic / Brass

Category:

Precision Ball Bearings

Contact Angle:

40 Degree / 35 Degree

EAN:

7316577312969

Enclosure:

Open

Flush Ground:

Yes

Harmonized Tariff Code:

8482.10.50.28

Inch - Metric:

Metric

Keyword String:

Angular Contact Ball

Long Description:

110MM Bore; 200MM Outside Diameter; 76MM Width; Open Enclosure; ABEC 3 / ISO P6 / ABEC 1 / ISO P0 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 40 Degree / 35 Degree Contact Angle; Phenolic / Brass Cage Material

Manufacturer Item Number:

BA2B 459422

Manufacturer Name:

SKF

Manufacturer URL:

http://www.skf.com"

Material - Ball:

Steel

Mounting Arrangement:

Duplex-Back to Back

Noun:

Bearing

Number of Bearings:

2 (1 Pair)

Other Features:

Double Row Thrust Pack / Angular Contact

Outside Diameter:

7.874 Inch / 200 Millimeter

Precision Class:

ABEC 3 / ISO P6 / ABEC 1 / ISO P0

Preload:

None

Raceway Style:

2 Rib Inner Ring and Outer Ring / 1 Rib Inner Ring and Outer Ring

Rolling Element:

Ball Bearing

UNSPSC:

31171531

Weight / Kilogram:

10.812

Weight / LBS:

23.814

Width:

2.992 Inch / 76 Millimeter
