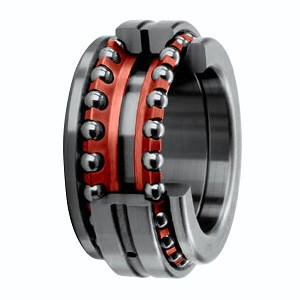

SKF BTW 90 CATN9/SP Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF BTW 90 CATN9/SP Precision Ball Bearing Specifications
-
Bore:3.543 Inch / 90 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Precision Ball Bearings
-
Contact Angle:60 Degree
-
EAN:7316574735655
-
Enclosure:Open
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword 3:Thrust
-
Keyword String:Ball Angular Contact Thrust
-
Long Description:90MM Bore; 140MM Outside Diameter; 60MM Width; Open Enclosure; ABEC 5 / ISO P5 Precision; Steel Ball Material; 1 (Single) Bearing; 60 Degree Contact Angle; Polyamide Cage Material; Ball Bearing
-
Manufacturer Item Number:BTW 90 CATN9/SP
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Double Row / Angular Contact Thrust Bearing / Double Direction
-
Outside Diameter:5.512 Inch / 140 Millimeter
-
Precision Class:ABEC 5 / ISO P5
-
Preload:None
-
Raceway Style:Not Applicable
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:3
-
Weight / LBS:5.95247
-
Width:2.362 Inch / 60 Millimeter
