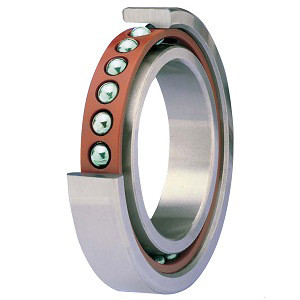

SKF BSA 209 CGA Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF BSA 209 CGA Precision Ball Bearing Specifications
-
Bore:1.772 Inch / 45 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Precision Ball Bearings
-
Contact Angle:62 Degree
-
EAN:7316575040994
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword 3:Thrust
-
Keyword String:Ball Angular Contact Thrust
-
Long Description:45MM Bore; 85MM Outside Diameter; 18MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 1 (Single) Bearing; 62 Degree Contact Angle; Polyamide Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:BSA 209 CGA
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Universal
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Single Row / Angular Contact / Super Precision
-
Outside Diameter:3.346 Inch / 85 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Light
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.48
-
Weight / LBS:1.058
-
Width:0.709 Inch / 18 Millimeter
