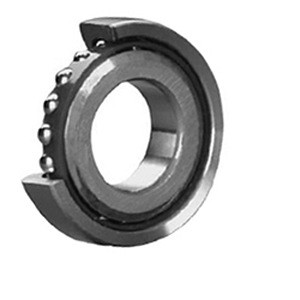

SKF BSA 308 CGA Precision Ball Bearing

MFG Part #
BSA 308 CGA
SKU#
TD73MG

Specifications

Bore1.575 Inch / 40 Millimeter
BrandSKF
Cage MaterialPolyamide
CategoryPrecision Ball Bearings
Contact Angle62 Degree
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bore:
1.575 Inch / 40 Millimeter
Brand:
SKF
Cage Material:
Polyamide
Category:
Precision Ball Bearings
Contact Angle:
62 Degree
EAN:
7316570238143
Enclosure:
Open
Flush Ground:
Yes
Harmonized Tariff Code:
8482.10.50.28
Inch - Metric:
Metric
Keyword String:
Angular Contact Ball
Long Description:
40MM Bore; 90MM Outside Diameter; 23MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 1 (Single) Bearings; 62 Degree Contact Angle; Polyamide Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
Manufacturer Item Number:
BSA 308 CGA
Manufacturer Name:
SKF
Manufacturer URL:
http://www.skf.com"
Material - Ball:
Steel
Mounting Arrangement:
Universal
Noun:
Bearing
Number of Bearings:
1 (Single)
Other Features:
Single Row / Angular Contact Thrust Bearing / Super Precision / Single Direction / Modified Internal Design
Outside Diameter:
3.543 Inch / 90 Millimeter
Precision Class:
ABEC 7 / ISO P4
Preload:
Light
Raceway Style:
1 Rib Inner Ring and Outer Ring
Rolling Element:
Ball Bearing
UNSPSC:
31171531
Weight / Kilogram:
0.737
Weight / LBS:
1.623
Width:
0.906 Inch / 23 Millimeter
$609.38
