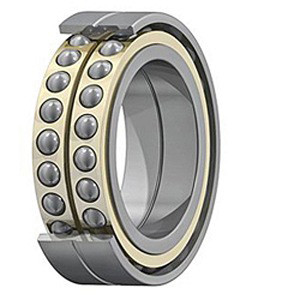

SKF 7318 BEMA/P5DBBVE575 Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 7318 BEMA/P5DBBVE575 Precision Ball Bearing Specifications
-
Bore:3.543 Inch / 90 Millimeter
-
Brand:SKF
-
Cage Material:Brass
-
Category:Precision Ball Bearings
-
Contact Angle:40 Degree
-
EAN:7316571368566
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:90MM Bore; 190MM Outside Diameter; 86MM Width; Open Enclosure; ABEC 5 / ISO P5 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 40 Degree Contact Angle; Brass Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:7318 BEMA/P5DBBVE575
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Duplex-Back to Back
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / High Capacity All ISO Corners
-
Outside Diameter:7.48 Inch / 190 Millimeter
-
Precision Class:ABEC 5 / ISO P5
-
Preload:Medium
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:11.06
-
Weight / LBS:24.383
-
Width:3.386 Inch / 86 Millimeter
