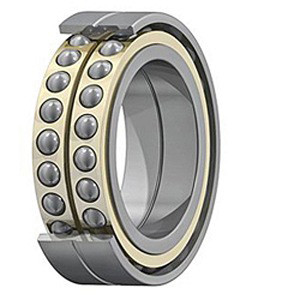

SKF 7318 BEMA/P5DBBVE575 Precision Ball Bearing

Specs

Bore:

3.543 Inch / 90 Millimeter

Brand:

SKF

Cage Material:

Brass

Category:

Precision Ball Bearings

Contact Angle:

40 Degree

EAN:

7316571368566

Enclosure:

Open

Flush Ground:

Yes

Harmonized Tariff Code:

8482.10.50.28

Inch - Metric:

Metric

Keyword String:

Ball Angular Contact

Long Description:

90MM Bore; 190MM Outside Diameter; 86MM Width; Open Enclosure; ABEC 5 / ISO P5 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 40 Degree Contact Angle; Brass Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing

Manufacturer Item Number:

7318 BEMA/P5DBBVE575

Manufacturer Name:

SKF

Manufacturer URL:

http://www.skf.com"

Material - Ball:

Steel

Mounting Arrangement:

Duplex-Back to Back

Noun:

Bearing

Number of Bearings:

2 (1 Pair)

Other Features:

Single Row / Angular Contact / High Capacity All ISO Corners

Outside Diameter:

7.48 Inch / 190 Millimeter

Precision Class:

ABEC 5 / ISO P5

Preload:

Medium

Raceway Style:

1 Rib Inner Ring and Outer Ring

Rolling Element:

Ball Bearing

UNSPSC:

31171531

Weight / Kilogram:

11.06

Weight / LBS:

24.383

Width:

3.386 Inch / 86 Millimeter
