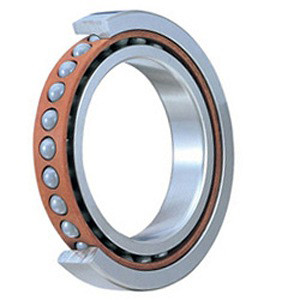

SKF 708 ACDGA/P4A Miniature Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 708 ACDGA/P4A Miniature Precision Ball Bearing Specifications
-
Bore:0.315 Inch / 8 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Miniature Precision Ball Bearings
-
Contact Angle:25 Degree
-
EAN:7316570852257
-
Enclosure:Open
-
Flange Outside Diameter:0 Inch / 0 Millimeter
-
Flanges:No
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Inner Race Width:0.276 Inch / 7 Millimeter
-
Keyword String:Angular Contact Ball
-
Long Description:8MM Bore; 22MM Outside Diameter; 7MM Inner Race Width; 7MM Outer Race Width; Open Enclosure; ABEC 7 / ISO P4 Precision; No Flange; Steel Ball Material; Steel Race Material; 1 (Single) Bearing
-
Manufacturer Item Number:708 ACDGA/P4A
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Universal
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Single Row / Angular Contact / High Precision
-
Outer Race Width:0.276 Inch / 7 Millimeter
-
Outside Diameter:0.866 Inch / 22 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Light
-
Race Material:Steel
-
Raceway Style:1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.02
-
Weight / LBS:0.04
