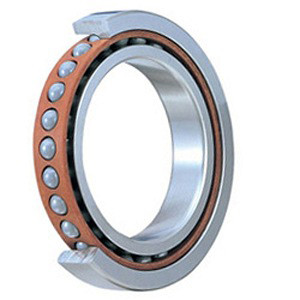

SKF 708 ACD/P4A Miniature Precision Ball Bearing

MFG Part #
708 ACD/P4A
SKU#
EV44QM

Specifications

Bore0.315 Inch / 8 Millimeter
BrandSKF
Cage MaterialPhenolic
CategoryMiniature Precision Ball Bearings
Contact Angle25 Degree
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bore:
0.315 Inch / 8 Millimeter
Brand:
SKF
Cage Material:
Phenolic
Category:
Miniature Precision Ball Bearings
Contact Angle:
25 Degree
EAN:
7316570577914
Enclosure:
Open
Flange Outside Diameter:
0 Inch / 0 Millimeter
Flanges:
No
Flush Ground:
No
Harmonized Tariff Code:
8482.10.50.28
Inch - Metric:
Metric
Inner Race Width:
0.276 Inch / 7 Millimeter
Keyword String:
Angular Contact Ball
Long Description:
8MM Bore; 22MM Outside Diameter; 7MM Inner Race Width; 7MM Outer Race Width; Open Enclosure; ABEC 7 / ISO P4 Precision; No Flange; Steel Ball Material; Steel Race Material; 1 (Single) Bearing
Manufacturer Item Number:
708 ACD/P4A
Manufacturer Name:
SKF
Manufacturer URL:
http://www.skf.com"
Material - Ball:
Steel
Noun:
Bearing
Number of Bearings:
1 (Single)
Other Features:
Single Row / Angular Contact / High Precision
Outer Race Width:
0.276 Inch / 7 Millimeter
Outside Diameter:
0.866 Inch / 22 Millimeter
Precision Class:
ABEC 7 / ISO P4
Preload:
None
Race Material:
Steel
Raceway Style:
1 Rib Outer Ring
Rolling Element:
Ball Bearing
UNSPSC:
31171531
Weight / Kilogram:
0.018
Weight / LBS:
0.04
$461.11
