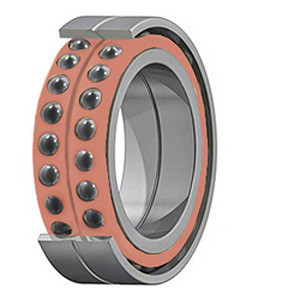

SKF 7003 FE/HCPA9AD8HDTVK360 Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 7003 FE/HCPA9AD8HDTVK360 Precision Ball Bearing Specifications
-
Bore:0.669 Inch / 17 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:18 Degree
-
EAN:7316575979980
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:17MM Bore; 35MM Outside Diameter; 20MM Width; Open Enclosure; ABEC 9 / ISO P2 Precision; Ceramic Ball Material; 2 (1 Pair) Bearings; 18 Degree Contact Angle; Phenolic Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:7003 FE/HCPA9AD8HDTVK360
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Ceramic
-
Mounting Arrangement:Duplex-Tandem
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / High Speed E Design
-
Outside Diameter:1.378 Inch / 35 Millimeter
-
Precision Class:ABEC 9 / ISO P2
-
Preload:None
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.08
-
Weight / LBS:0.169
-
Width:0.787 Inch / 20 Millimeter
