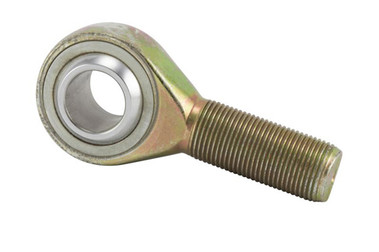

RBC Bearing SMLE2040

  • SKUZJ41SN
  • Brand
  • Manufacturer Part #SMLE2040
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing SMLE2040 Specifications

  • Ball Diameter:
    34.92 mm
  • Ball Material:
    Carbon Steel
  • Ball Width:
    25 mm
  • Bore Diameter:
    20 mm
  • Finish/Coating:
    Steel
  • Head Diameter:
    46 mm
  • Head Width:
    18 mm
  • Housing Material:
    52100 Bearing Steel
  • Length to Ball Center:
    78 mm
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    248ºF
  • Misalignment Angle:
    15º
  • Operating Temperature Range:
    -22 to 248°F
  • Overall Height:
    101 mm
  • Race Material:
    Uniflon® Self Lubricating Fabric
  • Radial Static Load Capacity:
    11668 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    SMLE Series Self-Lubricating
  • Shank Thread Length:
    47 mm
  • Shank Thread Size:
    M20 x1.5
  • Thread Direction:
    Left Hand
  • Thread Type:
    Metric
  • Weight:
    0.71 lbs
