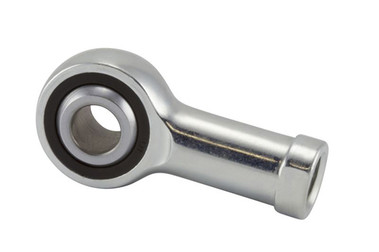

RBC Bearing CFHD3

  • SKUVM62KT
  • Brand
  • Manufacturer Part #CFHD3
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$11.66

RBC Bearing CFHD3 Specifications

  • Ball Diameter:
    0.4370 in
  • Ball Material:
    52100 Alloy Steel
  • Ball Width:
    0.3120 in
  • Bore Diameter:
    0.1900 in
  • Grade:
    Commercial
  • Head Diameter:
    0.6250 in
  • Head Width:
    0.2500 in
  • Housing Material:
    Carbon Steel
  • Length to Ball Center:
    1.0620 in
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    125ºF
  • Misalignment Angle:
    6.5º
  • Operating Temperature Range:
    Max 125°F
  • Overall Height:
    1.3750 in
  • Race Material:
    Thermo-Plastic
  • Radial Static Load Capacity:
    800 lbf
  • Rod End Type:
    Female Threaded
  • Series:
    CFHD Series Self-Lubricating
  • Shank Thread Length:
    0.5620 in
  • Shank Thread Size:
    .1900-32
  • Thread Direction:
    Right Hand
  • Thread Type:
    UNF-3B
  • Weight:
    0.08 lbs
