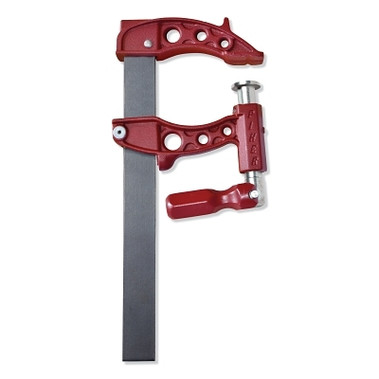

Piher Maxipress F Piston Clamp, 16 in Opening, 5 in Throat Depth, 9,000 N (1 EA / EA)

  • SKU848-60040
  • Brand
  • Manufacturer Part #60040
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$62.36

Piher Maxipress F Piston Clamp, 16 in Opening, 5 in Throat Depth, 9,000 N (1 EA / EA) Specifications

  • Bar Thickness:
    .3 in
  • Bar Width:
    1.4 in
  • Body Material:
    Nodular Cast Iron Jaws; Heat-Rolled Steel Bar
  • Handle Type:
    Dismountable; Interchangeable; Nylon and Fiberglass
  • Load Cap. [Nom]:
    9
  • Opening Size [Max]:
    16 in
  • Spindle Diam:
    1.1 in
  • Throat Depth [Nom]:
    5 in
  • Wt.:
    5.7 lb

 Help us improve our product information

Description

Rolled spring steel bar provides maximum pressure held throughout the whole job
Fixed jaw surface is grooved to achieve maximum grip
Spring activated back brake keeps moving jaw firmly in position
Covered double-threaded screw doubles both pressure and speed with a greasing hole for optimum lubrication
Dismountable, interchangeable easy grip handle
