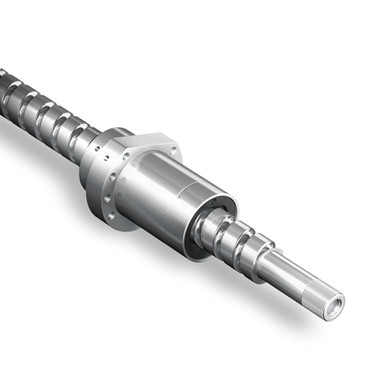

NSK Bearing W3214SS-3ZY-C5Z10 Ball Screw Assembly

  • SKUHC58TK
  • Brand
  • Manufacturer Part #W3214SS-3ZY-C5Z10
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$3,945.02

NSK Bearing W3214SS-3ZY-C5Z10 Ball Screw Assembly Specifications

  • Ball Nut Series:
    ZFD
  • Ball Screw Series:
    S
  • Brand:
    NSK
  • Category:
    Ball Screw Assemblies
  • Direction of Thread:
    Right Hand
  • EAN:
    29176508400
  • End Block Yes/No:
    No
  • Harmonized Tariff Code:
    8483.40.80.00
  • Inch - Metric:
    Metric
  • Keyword String:
    Ball Screw Linear
  • Long Description:
    Ball Screw with Flanged Nut; 32MM Thread Diameter; 10MM Thread Lead; 1870MM Overall Length; Right Hand Thread Direction; 1 Thread Starts; Steel; No End Block; S Ball Screw Series; ZFD Ball Nut Series
  • Manufacturer Item Number:
    W3214SS-3ZY-C5Z10
  • Manufacturer Name:
    NSK
  • Manufacturer URL:
    http://www.nskamericas.com
  • Material:
    Steel
  • Noun:
    Assembly
  • Other Features:
    Blank Shaft End / Preloaded / Fine Lead / Single Nut / Offset Type / 3 Circuit Return / Deflector Circulation / C5 Accuracy Grade
  • Overall Length:
    73.622 Inch / 1,870 Millimeter
  • Product Name:
    Ball Screw with Flanged Nut
  • Thread Diameter:
    1.26 Inch / 32 Millimeter
  • Thread Lead:
    0.394 Inch / 10 Millimeter
  • UNSPSC:
    26111535
  • Weight / Kilogram:
    11.91
  • Weight / LBS:
    26.235

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
