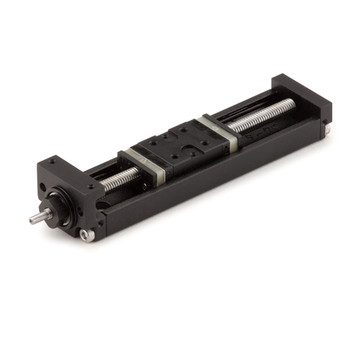

NSK Bearing MCM06060H10K00 Profile Rail Assembly

  • SKURD32IN
  • Brand
  • Manufacturer Part #MCM06060H10K00
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$3,486.56

NSK Bearing MCM06060H10K00 Profile Rail Assembly Specifications

  • Ball Screw Diameter:
    0.591 Inch / 15 Millimeter
  • Ball Screw Lead:
    0.394 Inch / 10 Millimeter
  • Ball Screw Yes/No:
    Yes
  • Brand:
    NSK
  • Category:
    Profile Rail Assemblies
  • Center Distance of Mounting Holes:
    3.937 Inch / 100 Millimeter
  • EAN:
    29176505010
  • Inch - Metric:
    Metric
  • Keyword 3:
    Linear
  • Keyword String:
    Profile Rail Ball Nut Linear
  • Long Description:
    Rail Assembly; Ball Nut Profile; Series MCM; 740MM Rail Length; 58MM Rail Width; 808MM OA Length; 59MM OA Width; 50MM OA Height; 1 Carriages/Rail; Stainless Steel; Ball Screw; 600MM Stroke Length; 100MM Fixing Hole Center to Center (Pitch)
  • Manufacturer Item Number:
    MCM06060H10K00
  • Manufacturer Name:
    NSK
  • Manufacturer URL:
    http://www.nskamericas.com
  • Material:
    Stainless Steel
  • Mounting Hole Diameter:
    0.236 Inch / 6 Millimeter
  • Noun:
    Assembly
  • Other Features:
    High Grade / Fluoride Low Temperature Chrome Plated / AS2 Grease / K1 Lubrication Unit
  • Overall Height:
    1.969 Inch / 50 Millimeter
  • Overall Length:
    31.811 Inch / 808 Millimeter
  • Overall Width:
    2.323 Inch / 59 Millimeter
  • Product Name:
    Rail Assembly
  • Product Type:
    Ball Nut Profile
  • Rail Length:
    29.134 Inch / 740 Millimeter
  • Rail Width:
    2.283 Inch / 58 Millimeter
  • Series:
    MCM
  • Stroke Length:
    23.622 Inch / 600 Millimeter
  • UNSPSC:
    23153000
  • Weight / Kilogram:
    6.71
  • Weight / LBS:
    14.771

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
