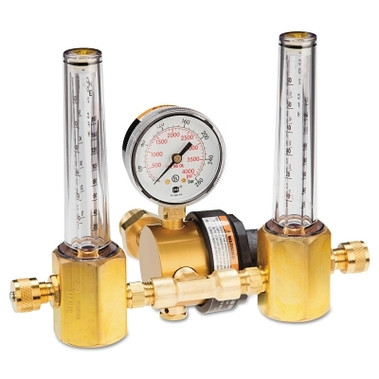

Smith Equipment MILLER-SMITH Flowmeter Regulators, Argon/Helium/Carbon Dioxide, 3000 PSIG inlet (1 EA / EA)

  • SKU635-23-50-580
  • Brand
  • Manufacturer Part #23-50-580
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$302.87

Smith Equipment MILLER-SMITH Flowmeter Regulators, Argon/Helium/Carbon Dioxide, 3000 PSIG inlet (1 EA / EA) Specifications

  • Applications:
    Cutting; Welding
  • Connection Type:
    CGA 580 (Inlet)
  • Flow Cap. [Max]:
    160 SCFH
  • Flow Cap. [Min]:
    0 SCFH
  • Flow Range:
    0 - 160 SCFH Helium; 0 - 50 SCFH CO2; 0 - 60 SCFH Argon
  • Gas Type:
    Argon; Helium; Carbon Dioxide
  • Gauge Size:
    2 in
  • Inlet Connection:
    CGA 580
  • Inlet Pressure [Max]:
    3
  • Inlet Type:
    CGA 580
  • Outlet Connection:
    5/8 in - 18 RH (F)
  • Outlet Pressure [Max]:
    50 psig
  • Outlet Size:
    5/8 in
  • Outlet Type:
    Right Hand Thread
  • Thread - TPI or Pitch:
    5/8 in - 18 RH
  • Type:
    Flowmeter Regulator

 Help us improve our product information

Description

Built-in rupture disc reduces possibility of flow tube damage due to high pressure inlet surge
Exceptional value and compact design, provides precise shield gas regulation for MIG and TIG welding applications and more
Precision flow adjustment valve locks flow at desired setting
Shatter-resistant polycarbonate flow tube features triple scale for Argon, Helium and Argon/CO2 and has a packless O-ring flow tube seal which reduces maintenance
