Dodge B12C21S11434 Right Angle Shaft

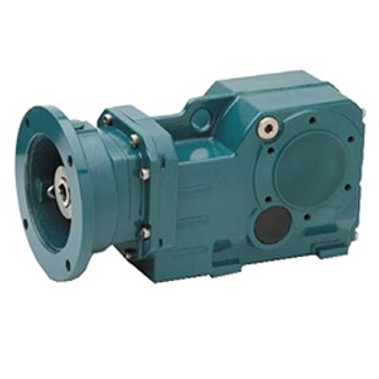

Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge B12C21S11434 Right Angle Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:9.64 Inch / 244.856 Millimeter
-
Base to Center of Output Shaft:10.43 Inch / 264.922 Millimeter
-
Bolt Hole Diameter:1.02 Inch / 25.908 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:0.79 Inch / 20.066 Millimeter
-
EAN:782476445386
-
Fan Cooling:No
-
Gearing:Helical-Bevel
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:10.11HP
-
Input Shaft Diameter:1.375 Inch / 34.925 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical / Bevel
-
Long Description:Right Angle Reducer; QUANTIS; 125 To 1 Nominal Ratio; 213TC/215TC Frame; C-Face Input; Left Hand Output; Helical-Bevel Gear; RHB Series; Foot Mounted; 1-3/8 Input Shaft Diameter
-
Manufacturer Item Number:BB1283 210-CC 114.34 2-7/8 S SHF
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:RHB
-
Maximum Overhung load value And um:6907Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Square
-
Mounting Frame:213TC/215TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Center Distance:0.79 Inch / 20.07 Millimeter
-
Nominal Max Input Rating:10HP
-
Nominal Max Output RPM:14
-
Nominal Ratio:5.20902777777778
-
Noun:Reducer
-
Other Features:Triple Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:15
-
Output Shaft Diameter:2.875 Inch / 73.025 Millimeter
-
Output Shaft Length:5.51 Inch / 139.954 Millimeter
-
Output Torque:41623In-Lbs
-
Output Type:Left Hand
-
Overall Height:16.65 Inch / 422.91 Millimeter
-
Overall Length:26.76 Inch / 679.704 Millimeter
-
Overall Width:17.325 Inch / 440.055 Millimeter
-
Reducer Type:Right Angle
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:204.116
-
Weight / LBS:416
