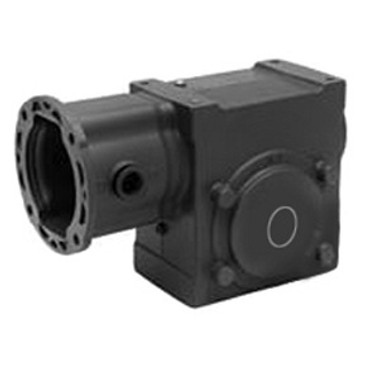

Dodge 23A05L56 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 23A05L56 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:4.81 Inch / 122.174 Millimeter
-
Base to Center of Output Shaft:2.5 Inch / 63.5 Millimeter
-
Bolt Hole Diameter:0.375 Inch / 9.525 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:2.31 Inch / 58.674 Millimeter
-
EAN:782475784790
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:5.25HP
-
Input Shaft Diameter:0.875 Inch / 22.225 Millimeter
-
Input Shaft Length:1.17 Inch / 29.718 Millimeter
-
Input Type:C-Face Coupling
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 5 To 1 Nominal Ratio; 56C Frame; Coupling Input; Left Hand Output; Worm Gear; 23 Series; Base Mounted; 7/8 Input Shaft Diameter
-
Manufacturer Internal Number:23A05L56
-
Manufacturer Item Number:23A05L56 TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:23
-
Maximum Overhung load value And um:1330Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:56C
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:2.31 Inch / 58.67 Millimeter
-
Nominal Max Input Rating:5HP
-
Nominal Max Output RPM:350
-
Nominal Ratio:0.209027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Totally Enclosed Non-Vented Sealing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:350
-
Output Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Output Shaft Length:2.18 Inch / 55.372 Millimeter
-
Output Torque:881In-Lbs
-
Output Type:Left Hand
-
Overall Height:8.08 Inch / 205.232 Millimeter
-
Overall Length:12.25 Inch / 311.15 Millimeter
-
Overall Width:8.39 Inch / 213.106 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:22.68
-
Weight / LBS:59
