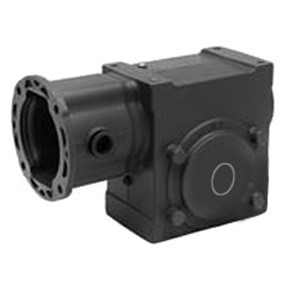

Dodge 47A20L21 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 47A20L21 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:10.06 Inch / 255.524 Millimeter
-
Base to Center of Output Shaft:5.31 Inch / 134.874 Millimeter
-
Bolt Hole Diameter:0.625 Inch / 15.875 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:4.75 Inch / 120.65 Millimeter
-
EAN:782475793938
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:10.82HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:1.81 Inch / 45.974 Millimeter
-
Input Type:C-Face Coupling
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; TIGEAR-2; 20 To 1 Nominal Ratio; 213TC/215TC Frame; Coupling Input; Left Hand Output; Worm Gear; 47 Series; Base Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Internal Number:47A20L21
-
Manufacturer Item Number:47A20L21 TIGEAR-2 REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:47
-
Maximum Overhung load value And um:5600Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:213TC/215TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor / Wall / Ceiling
-
Nominal Center Distance:4.75 Inch / 120.65 Millimeter
-
Nominal Max Input Rating:10HP
-
Nominal Max Output RPM:87.5
-
Nominal Ratio:0.834027777777778
-
Noun:Reducer
-
Other Features:Single Reduction / Totally Enclosed Non-Vented Sealing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:88
-
Output Shaft Diameter:2 Inch / 50.8 Millimeter
-
Output Shaft Length:4.01 Inch / 101.854 Millimeter
-
Output Torque:6659In-Lbs
-
Output Type:Left Hand
-
Overall Height:14.56 Inch / 369.824 Millimeter
-
Overall Length:19.97 Inch / 507.238 Millimeter
-
Overall Width:13.87 Inch / 352.298 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / Kilogram:99.43
-
Weight / LBS:219
