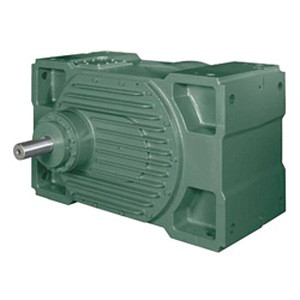

Dodge 449326 Parallel Shaft

Specs

Base Included:

Yes

Base to Center of Input Shaft:

12.75 Inch / 323.85 Millimeter

Base to Center of Output Shaft:

12.75 Inch / 323.85 Millimeter

Bolt Hole Diameter:

1.024 Inch / 26.01 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

20.31 Inch / 515.874 Millimeter

EAN:

782476468958

Fan Cooling:

No

Gearing:

Helical or Helical-Bevel

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

260HP

Input Shaft Diameter:

2.166 Inch / 55.016 Millimeter

Input Shaft Length:

5.98 Inch / 151.892 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical / Bevel

Long Description:

Parallel Reducer; MAGNAGEAR; 20:1 Nominal Ratio; Shaft Input; Shaft Output; Helical or Helical-Bevel Gear; G210 Series; Direct Mounted; 2.166 Input Shaft Diameter

Manufacturer Internal Number:

449326

Manufacturer Item Number:

MAGNAGEAR G210HPS2-22.4

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

G210

Motor Included:

No

Mounting Bolt Pattern footprint:

Rectangular

Mounting Frame:

Not Applicable

Mounting Method:

Direct Mounted

Mounting Position:

Universal

Nominal Center Distance:

20.31 Inch / 515.87 Millimeter

Nominal Max Input Rating:

250HP

Nominal Max Output RPM:

87.5

Nominal Ratio:

0.834027777777778

Noun:

Reducer

Other Features:

Double Reduction / With Mounting Pads / Optional Shaft Driven Fan

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

78

Output Shaft Diameter:

4.724 Inch / 119.99 Millimeter

Output Shaft Length:

7 Inch / 177.8 Millimeter

Output Torque value plus um:

205000In-Lbs

Output Type:

Shaft

Overall Height:

25.5 Inch / 647.7 Millimeter

Overall Length:

29.4 Inch / 746.76 Millimeter

Overall Width:

49.78 Inch / 1,264.412 Millimeter

Reducer Type:

Parallel

Tradename:

MAGNAGEAR

UNSPSC:

26111538 / 26111542

Weight / Kilogram:

968.84

Weight / LBS:

2134
