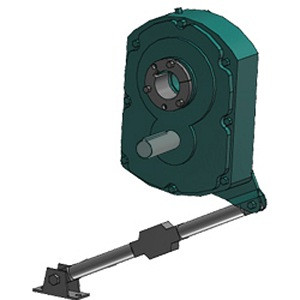

Dodge 272370 Parallel Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

0 Inch / 0 Millimeter

Base to Center of Output Shaft:

0 Inch / 0 Millimeter

Bolt Hole Diameter:

1 Inch / 25.4 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

30.58 Inch / 776.732 Millimeter

EAN:

782475146567

Fan Cooling:

No

Gearing:

Helical

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Class 30 Gray Iron

Inch - Metric:

Inch

Input Rating value plus um:

500HP

Input Shaft Diameter:

3.438 Inch / 87.325 Millimeter

Input Shaft Length:

14.25 Inch / 361.95 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical

Long Description:

Parallel Reducer; TORQUE-ARM; 30:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TDT Series; Shaft Mounted; 3-7/16 Input Shaft Diameter

Manufacturer Internal Number:

272370

Manufacturer Item Number:

TDT1530T,TV TAPER BUSHED REDUCER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Manufacturer's Series:

TDT

Motor Included:

No

Mounting Frame:

Not Applicable

Mounting Method:

Shaft Mounted

Nominal Center Distance:

30.58 Inch / 776.73 Millimeter

Nominal Max Input Rating:

500HP

Nominal Max Output RPM:

58.3

Nominal Ratio:

1.25069444444444

Noun:

Reducer

Other Features:

Double Reduction / Without Bushing / Other Mount: Torque Arm Mounted

Output Bore Range:

8 To 10 Inch / 203.2 To 254 Millimeter

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

0

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Type:

Bushed

Overall Height:

58.62 Inch / 1,488.948 Millimeter

Overall Length:

37.76 Inch / 959.104 Millimeter

Overall Width:

47 Inch / 1,193.8 Millimeter

Reducer Type:

Parallel

Tradename:

TORQUE-ARM

UNSPSC:

26111538

Weight / Kilogram:

2552.39

Weight / LBS:

5622
