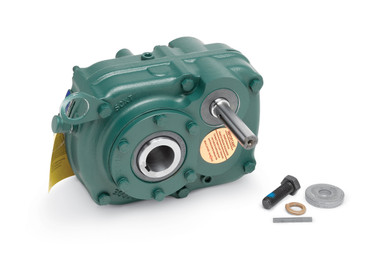

Dodge 351165 Parallel Shaft

Specs

Base Included:

No

Base to Center of Input Shaft:

0 Inch / 0 Millimeter

Base to Center of Output Shaft:

0 Inch / 0 Millimeter

Bolt Hole Diameter:

0 Inch / 0 Millimeter

Brand:

DODGE

Category:

Parallel Shafts

Center Distance:

3.27 Inch / 83.058 Millimeter

EAN:

782475205219

Fan Cooling:

No

Gearing:

Helical

Harmonized Tariff Code:

8483.40.10.00

Housing Material And Finish:

Rugged Cast Iron

Inch - Metric:

Inch

Input Shaft Diameter:

1.125 Inch / 28.575 Millimeter

Input Shaft Length:

0 Inch / 0 Millimeter

Input Type:

Shaft

Keyword String:

Speed Helical

Long Description:

Parallel Reducer; 5.62:1 Nominal Ratio; Helical Gear; TORQUEARM; Shaft Input; Hollow Shaft Output; Shaft Mounted; SCXT Series; 1-1/8 Input Shaft Diameter

Manufacturer Internal Number:

351165

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.baldor.com"

Manufacturer's Series:

SCXT

Motor Included:

No

Mounting Frame:

Not Applicable

Mounting Method:

Shaft Mounted

Nominal Center Distance:

3.27 Inch / 83.058 Millimeter

Nominal Max Input Rating:

Not Available

Nominal Max Output RPM:

311.4

Nominal Ratio:

5.62:1

Noun:

Reducer

Other Features:

Single Reduction

Output Bore:

0 Inch / 0 Millimeter

Output RPM at 1750 RPM Input:

0

Output Shaft Diameter:

0 Inch / 0 Millimeter

Output Shaft Length:

0 Inch / 0 Millimeter

Output Type:

Hollow Shaft

Overall Height:

9.94 Inch / 252.476 Millimeter

Overall Length:

4.75 Inch / 120.65 Millimeter

Overall Width:

7.13 Inch / 181.102 Millimeter

Reducer Type:

Parallel

Tradename:

TORQUEARM

UNSPSC:

26111538

Weight / Kilogram:

19.077

Weight / LBS:

42.02
