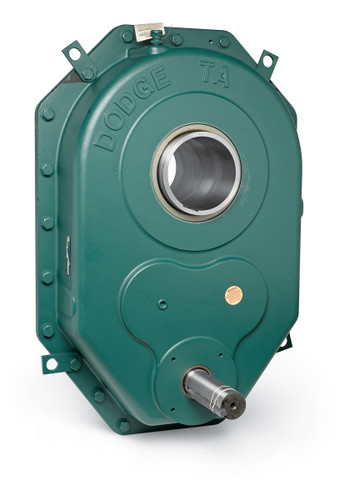

Dodge 272150 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 272150 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:1 Inch / 25.4 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:26.28 Inch / 667.512 Millimeter
-
EAN:782475146130
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:350HP
-
Input Shaft Diameter:2.938 Inch / 74.625 Millimeter
-
Input Shaft Length:12.72 Inch / 323.088 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; TORQUE-ARM; 25:1 Nominal Ratio; Shaft Input; Bushed Output; Helical Gear; TDT Series; Shaft Mounted; 2-15/16 Input Shaft Diameter
-
Manufacturer Internal Number:272150
-
Manufacturer Item Number:TDT1425T,TV TAPER BUSHED REDUCER
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:TDT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:26.28 Inch / 667.51 Millimeter
-
Nominal Max Input Rating:350HP
-
Nominal Max Output RPM:70
-
Nominal Ratio:1.04236111111111
-
Noun:Reducer
-
Other Features:Double Reduction / Without Bushing / Other Mount: Torque Arm Mounted
-
Output Bore Range:6 To 8 Inch / 152.4 To 203.2 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Bushed
-
Overall Height:50.06 Inch / 1,271.524 Millimeter
-
Overall Length:32.4 Inch / 822.96 Millimeter
-
Overall Width:39 Inch / 990.6 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUE-ARM
-
UNSPSC:26111538
-
Weight / Kilogram:1559.94
-
Weight / LBS:3436
