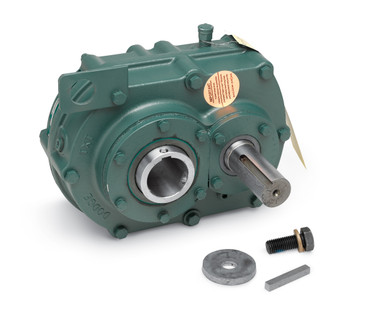

Dodge 254208 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge 254208 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:0 Inch / 0 Millimeter
-
Base to Center of Output Shaft:0 Inch / 0 Millimeter
-
Bolt Hole Diameter:0 Inch / 0 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:4.88 Inch / 123.952 Millimeter
-
EAN:782475689859
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Rugged Cast Iron
-
Inch - Metric:Inch
-
Input Shaft Diameter:1.938 Inch / 49.225 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; 5.65:1 Nominal Ratio; Helical Gear; TORQUEARM; Shaft Input; Hollow Shaft Output; Shaft Mounted; SCXT Series; 1-15/16 Input Shaft Diameter
-
Manufacturer Internal Number:254208
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:SCXT
-
Motor Included:No
-
Mounting Frame:Not Applicable
-
Mounting Method:Shaft Mounted
-
Nominal Center Distance:4.88 Inch / 123.952 Millimeter
-
Nominal Max Input Rating:Not Available
-
Nominal Max Output RPM:309.7
-
Nominal Ratio:5.65:1
-
Noun:Reducer
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:0
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Type:Hollow Shaft
-
Overall Height:15.31 Inch / 388.874 Millimeter
-
Overall Length:9.56 Inch / 242.824 Millimeter
-
Overall Width:10.38 Inch / 263.652 Millimeter
-
Reducer Type:Parallel
-
Tradename:TORQUEARM
-
UNSPSC:26111538
-
Weight / Kilogram:52.664
-
Weight / LBS:116
