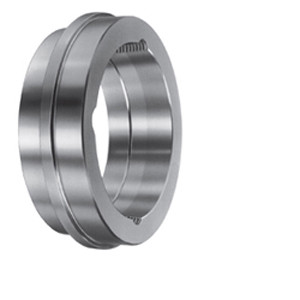

Dodge 226101 Hubs

Specs

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

13/16 To 3-1/4 Inch / 24 To 82 Millimeter

Bushing Size if bushed:

3020

Bushing Style:

Taper Lock

Category:

Hubs

EAN:

782475136759

Harmonized Tariff Code:

8483.90.80.80

Hub Type:

Weld-On Hub

Inch - Metric:

Inch

Keyway Yes/No:

No

Keyword String:

Weld-On

Length Thru Bore:

1.813 Inch / 46.05 Millimeter

Long Description:

5-3/4 Outside Diameter

Manufacturer Internal Number:

226101

Manufacturer Item Number:

F30 TL HUB

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Material:

Steel

Mounting Method:

Bushed

Nominal Bolt Circle Diameter Round:

4.25 Inch / 107.95 Millimeter

Noun:

Hub

Other Features:

Used With Fan Rotor - Pulley - Plate Sprocket - Impeller - Agitator

Outside Diameter:

5.75 Inch / 146.05 Millimeter

Pilot Diameter:

5.5 Inch / 139.7 Millimeter

Pilot Length:

0.75 Inch / 19.05 Millimeter

UNSPSC:

26111534

Weight / Kilogram:

2.157

Weight / LBS:

5.3
