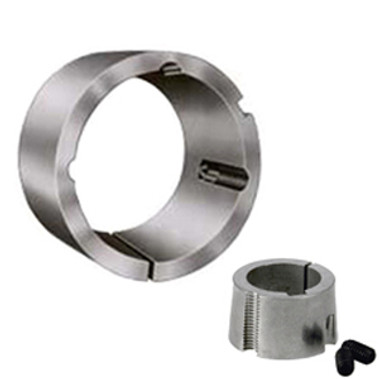

Dodge 120014 Hubs

Specs

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

3/4 To 2-1/2 Inch / 20 To 68 Millimeter

Bushing Size if bushed:

2525

Bushing Style:

Taper Lock

Category:

Hubs

EAN:

782475098026

Harmonized Tariff Code:

8483.90.80.80

Hub Type:

Weld-On Hub

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Weld-On

Length Thru Bore:

2.5 Inch / 63.5 Millimeter

Long Description:

4-1/8 Outside Diameter

Manufacturer Internal Number:

120014

Manufacturer Item Number:

2525B TL ADAPTER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Material:

Cast Iron

Mounting Method:

Bushed

Nominal Bolt Circle Diameter Round:

3.375 Inch / 85.725 Millimeter

Noun:

Hub

Other Features:

Keyway On OD / 3 Tapped Half Circle Hole

Outside Diameter:

4.125 Inch / 104.775 Millimeter

Pilot Diameter:

4.125 Inch / 104.775 Millimeter

Pilot Length:

0 Inch / 0 Millimeter

UNSPSC:

26111534

Weight / Kilogram:

1.45

Weight / LBS:

3.2
