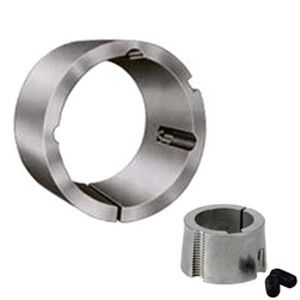

Dodge 120017 Hubs

Specs

Bore:

0 Inch / 0 Millimeter

Brand:

DODGE

Bushing Bore Range:

1-7/16 To 4-7/16 Inch / 37 To 113 Millimeter

Bushing Size if bushed:

4040

Bushing Style:

Taper Lock

Category:

Hubs

EAN:

782475098057

Harmonized Tariff Code:

8483.90.80.80

Hub Type:

Weld-On Hub

Inch - Metric:

Inch

Keyway Yes/No:

Yes

Keyword String:

Weld-On

Length Thru Bore:

4 Inch / 101.6 Millimeter

Long Description:

7-1/4 Outside Diameter

Manufacturer Internal Number:

120017

Manufacturer Item Number:

4040B TL ADAPTER

Manufacturer Name:

ABB MOTORS AND MECHANICAL INC

Manufacturer URL:

http://www.dodge-pt.com"

Material:

Cast Iron

Mounting Method:

Bushed

Nominal Bolt Circle Diameter Round:

5.75 Inch / 146.05 Millimeter

Noun:

Hub

Other Features:

Keyway On OD / 3 Tapped Half Circle Hole

Outside Diameter:

7.25 Inch / 184.15 Millimeter

Pilot Diameter:

7.25 Inch / 184.15 Millimeter

Pilot Length:

0 Inch / 0 Millimeter

UNSPSC:

26111534

Weight / Kilogram:

7.85

Weight / LBS:

17.3
