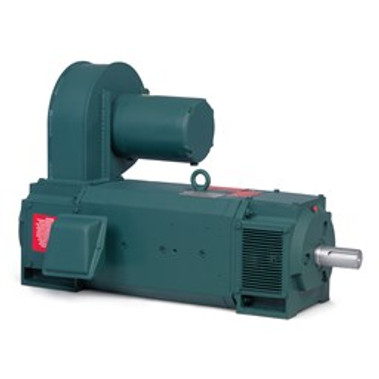

Baldor-Reliance D2040R-BV 40HP, 1750RPM, DC, 2115ATZ, DPG-FV,

  • SKUNH46YG
  • Brand
  • Manufacturer Part #D2040R-BV
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$19,846.58

Baldor-Reliance D2040R-BV 40HP, 1750RPM, DC, 2115ATZ, DPG-FV, Specifications

  • Armature Voltage:
    240 V"
  • Base Speed:
    1750 rpm
  • Enclosure:
    DP
  • Field Voltage:
    150 V
  • Frame:
    LC2115ATZ
  • Frame Material:
    Steel
  • Output Power:
    40.000 HP
  • Agency Approvals:
    CCSA US
  • Ambient Temperature:
    40 °C
  • Armature Current:
    146.0 a
  • Base Indicator:
    Rigid
  • Bearing Grease Type:
    Polyrex EM (-20F +300F)
  • Drip Cover:
    No Drip Cover
  • Duty Rating:
    CONT
  • Feedback Device:
    NO FEEDBACK
  • Field Winding Type:
    STR. SHUNT
  • Frame Prefix:
    LC
  • Heater Indicator:
    No Heater
  • Insulation Class:
    F
  • Lifting Lugs:
    Standard Lifting Lugs
  • Mounting Arrangement:
    F2
  • Overall Length:
    35.25 IN
  • Service Factor:
    1.00
  • Shaft Diameter:
    1.875 IN
  • Shaft Extension Location:
    Pulley End
  • Shaft Ground Indicator:
    No Shaft Grounding
  • Shaft Slinger Indicator:
    No Slinger
  • Motor Standards:
    NEMA
  • Thermal Device - Bearing:
    None
