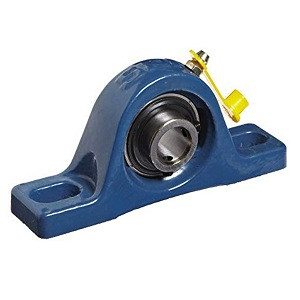

SKF SYH 2.1/4 TF/W64 Pillow Block Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF SYH 2.1/4 TF/W64 Pillow Block Bearing Specifications
-
Base to Center Height:2.688 Inch / 68.275 Millimeter
-
Bolt Spacing Maximum:7.938 Inch / 201.625Millimeter
-
Bolt Spacing Minimum:7.063 Inch / 179.4Millimeter
-
Bore:2.25 Inch / 57.15 Millimeter
-
Brand:SKF
-
Category:Pillow Block Bearings
-
EAN:7316573958727
-
Expansion / Non-expansion:Non-Expansion
-
Harmonized Tariff Code:8483.20.80.40
-
Housing Configuration:1 Piece Solid
-
Housing Material:Cast Iron
-
Housing Style:2 Bolt Pillow Block
-
Inch - Metric:Inch
-
Insert Part Number:YAR 212-204-2F
-
Keyword String:Pillow Block
-
Length Thru Bore:2.563 Inch / 65.1 Millimeter
-
Long Description:2 Bolt Pillow Block; 2-1/4 Bore
-
Manufacturer Internal Number:SYH 2.1/4 TF/W64
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Mounting Bolts:5/8 Inch
-
Mounting Method:Set Screw
-
Nominal Bolt Center to Center:7.5 Inch / 190 Millimeter
-
Noun:Bearing
-
Number of Mounting Holes:2
-
Other Features:Single Row / Spherical / Standard Duty / Wide Inner Ring / Low Base / Has Flinger
-
Relubricatable:Yes
-
Rolling Element:Ball Bearing
-
Seals:M Seal
-
UNSPSC:31171511
-
Weight / Kilogram:4.7
-
Weight / LBS:11.5
