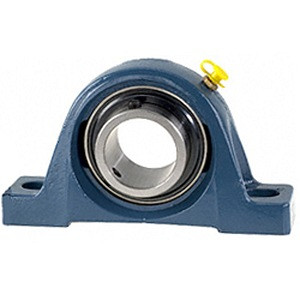

SKF SY 17 TF Pillow Block Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF SY 17 TF Pillow Block Bearing Specifications
-
Actual Bolt Center to Center:3.8 Inch / 96Millimeter
-
Base to Center Height:1.189 Inch / 30.2 Millimeter
-
Bolt Spacing Maximum:0 Inch / 0Millimeter
-
Bolt Spacing Minimum:0 Inch / 0Millimeter
-
Bore:0.669 Inch / 17 Millimeter
-
Brand:SKF
-
Category:Pillow Block Bearings
-
EAN:7316570037432
-
Expansion / Non-expansion:Non-expansion
-
Harmonized Tariff Code:8483.20.40.40
-
Housing Configuration:1 Piece Solid
-
Housing Material:Cast Iron
-
Housing Style:2 Bolt Pillow Block
-
Inch - Metric:Metric
-
Insert Part Number:YAR 203-2F
-
Keyword String:Pillow Block
-
Length Thru Bore:1.079 Inch / 27.4 Millimeter
-
Long Description:2 Bolt Pillow Block; 17MM Bore; 30.2MM Base to Center Height; Set Screw Mount; Ball Bearing; Relubricatable; Cast Iron; M Seal; Non-expansion
-
Manufacturer Item Number:SY 17 TF
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Mounting Bolts:10 Millimeter
-
Mounting Method:Set Screw
-
Nominal Bolt Center to Center:3.8 Inch / 97 Millimeter
-
Noun:Bearing
-
Number of Mounting Holes:2
-
Other Features:Single Row / Standard Duty / Wide Inner Race / Y Bearing / Has Flinger
-
Relubricatable:Yes
-
Rolling Element:Ball Bearing
-
Seals:M Seal
-
UNSPSC:31171511
-
Weight / Kilogram:0.5
-
Weight / LBS:1.1
