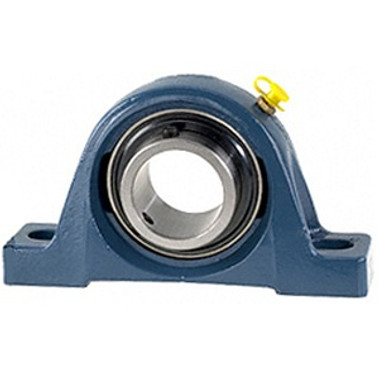

SKF SY 1.5/8 TF Pillow Block Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF SY 1.5/8 TF Pillow Block Bearing Specifications
-
Actual Bolt Center to Center:0 Inch / 0Millimeter
-
Base to Center Height:2.125 Inch / 53.98 Millimeter
-
Bolt Spacing Maximum:6 Inch / 152.4Millimeter
-
Bolt Spacing Minimum:5.313 Inch / 134.95Millimeter
-
Bore:1.625 Inch / 41.275 Millimeter
-
Brand:SKF
-
Category:Pillow Block Bearings
-
EAN:7316577755636
-
Expansion / Non-expansion:Non-expansion
-
Harmonized Tariff Code:8483.20.40.40
-
Housing Configuration:1 Piece Solid
-
Housing Material:Cast Iron
-
Housing Style:2 Bolt Pillow Block
-
Inch - Metric:Inch
-
Insert Part Number:YAR 209-110-2F
-
Keyword String:Pillow Block
-
Length Thru Bore:1.938 Inch / 49.225 Millimeter
-
Long Description:2 Bolt Pillow Block; 1-5/8 Bore
-
Manufacturer Item Number:SY 1.5/8 TF
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Mounting Bolts:1/2 Inch
-
Mounting Method:Set Screw
-
Nominal Bolt Center to Center:5.8 Inch / 146.5 Millimeter
-
Noun:Bearing
-
Number of Mounting Holes:2
-
Other Features:Single Row / Standard Duty / Wide Inner Race / Y Bearing / Has Flinger
-
Relubricatable:Yes
-
Rolling Element:Ball Bearing
-
Seals:M Seal
-
UNSPSC:31171511
-
Weight / Kilogram:2.45
-
Weight / LBS:5.4
