SKF

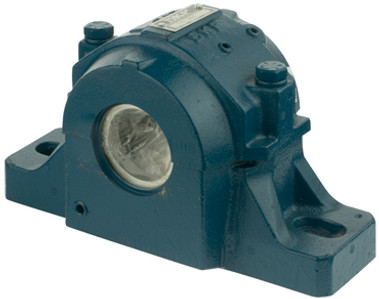

SKF SAFS 224

MFG Part #
SAFS 224
SKU#
DJ34QV

Specifications

Bolt Hole Spacing Range [MAX]14 1/2 in
Bolt Hole Spacing Range [MIN]13 1/4 in
Bolt Hole Spacing13 7/8 in
Bolt Holes4
Center Line to Base Dimension5 1/4 in
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bolt Hole Spacing Range [MAX]:
14 1/2 in
Bolt Hole Spacing Range [MIN]:
13 1/4 in
Bolt Hole Spacing:
13 7/8 in
Bolt Holes:
4
Center Line to Base Dimension:
5 1/4 in
EAN or UPC:
7316576670824
Housing Length:
16 1/2 in
Housing Material:
Cast Steel
Housing Width:
7 3/8 in
Locking Device:
Locknut Locking
Mounted Unit Series:
Spherical Roller Bearing Pillow Block
Seal Type:
Labyrinth Seals
Shaft Dia.:
120 mm
Weight:
95.923 LB
$2,727.98
