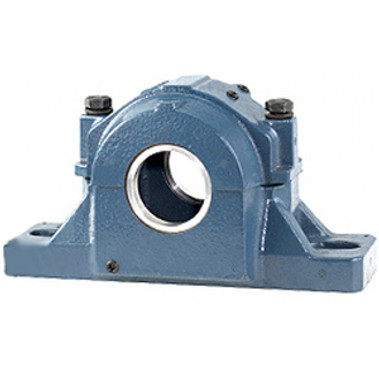

SKF SAFS 22224 Y Pillow Block Bearing

SKUFI95BG

BrandSKF

Manufacturer Part #SAFS 22224 Y

Available to Order

SKF SAFS 22224 Y Pillow Block Bearing Specifications

Actual Bolt Center to Center:

0 Inch / 0Millimeter
Base to Center Height:

5.25 Inch / 133.35 Millimeter
Bolt Spacing Maximum:

14.5 Inch / 368.3Millimeter
Bolt Spacing Minimum:

13.25 Inch / 336.55Millimeter
Bore:

4.724 Inch / 120 Millimeter
Brand:

SKF
Category:

Pillow Block Bearings
EAN:

7316570721683
Expansion / Non-expansion:

Expansion
Harmonized Tariff Code:

8483.20.40.80
Housing Configuration:

2 Piece Split
Housing Material:

Cast Steel
Housing Style:

2 Bolt Pillow Block
Inch - Metric:

Metric
Insert Part Number:

22224 E
Keyword String:

Pillow Block
Length Thru Bore:

7.375 Inch / 187.325 Millimeter
Long Description:

2 Bolt Pillow Block; 120MM Bore; 133.35MM Base to Center Height; Shaft Mount Mount; Spherical Roller Bearing; 336.55MM Minimum Bolt Spacing; 368.3MM Bolt Spacing Maximum; Relubricatable; Cast Steel; Labyrinth; Expansion
Manufacturer Item Number:

SAFS 22224 Y
Manufacturer Name:

SKF
Manufacturer URL:

http://www.skf.com"
