SKF

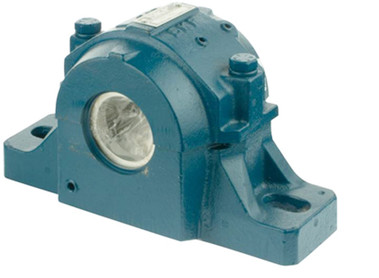

SKF SAFD 544

MFG Part #
SAFD 544
SKU#
RH35EZ

Specifications

Base to Bore Centerline9.5000 in
Base Width6-3/4 in
Bolt Center-to-Center Length27-1/8 in
Compatible Bearing Series/Part Number22244CCK/W33, 23244CCK/W33, C2244 K
Compatible Bore Diameter200 mm, 8.0000 in, 7.9375 in
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Base to Bore Centerline:
9.5000 in
Base Width:
6-3/4 in
Bolt Center-to-Center Length:
27-1/8 in
Compatible Bearing Series/Part Number:
22244CCK/W33, 23244CCK/W33, C2244 K
Compatible Bore Diameter:
200 mm, 8.0000 in, 7.9375 in
Finish/Coating:
Uncoated
Housing Construction:
Split Pillow Block
Housing Material:
Ductile Iron
Inside Diameter:
200 mm, 8.0000 in, 7.9375 in
Mounting:
Four-Bolt Base
Overall Height:
18.7500 in
Overall Length:
32.7500 in
Overall Width:
15.0000 in
Series:
SAFD
Standards Met:
ASTM A536 Grade 65-45-12
Weight:
510.15 lbs
$10,768.37
