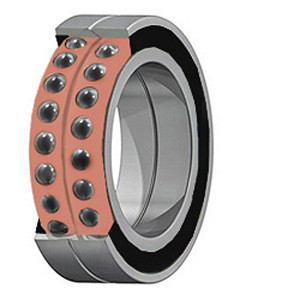

SKF S7018 CE/HCP4ADGA Precision Ball Bearing

Images may not be exact. Please refer to Part # and Description.

Quantity:

$3,576.78

SKF S7018 CE/HCP4ADGA Precision Ball Bearing Specifications

Bore:

3.543 Inch / 90 Millimeter
Brand:

SKF
Cage Material:

Phenolic
Category:

Precision Ball Bearings
Contact Angle:

15 Degree
EAN:

7316576756108
Enclosure Type:

Non Contact Seal
Enclosure:

2 Seals
Flush Ground:

Yes
Harmonized Tariff Code:

8482.10.50.28
Inch - Metric:

Metric
Keyword String:

Ball Angular Contact
Long Description:

90MM Bore; 140MM Outside Diameter; 48MM Width; 2 Seals Enclosure; ABEC 7 / ISO P4 Precision; Ceramic Ball Material; 2 (1 Pair) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
Manufacturer Item Number:

S7018 CE/HCP4ADGA
Manufacturer Name:

SKF
Manufacturer URL:

http://www.skf.com"
Material - Ball:

Ceramic
Mounting Arrangement:

Duplex-Universal
Noun:

Bearing
Number of Bearings:

2 (1 Pair)
Other Features:

Single Row / Angular Contact / High Speed E Design
Outside Diameter:

5.512 Inch / 140 Millimeter
Precision Class:

ABEC 7 / ISO P4
Preload:

Light
Raceway Style:

1 Rib Inner Ring and Outer Ring
Rolling Element:

Ball Bearing
UNSPSC:

31171531
Weight / Kilogram:

2.44
Weight / LBS:

5.388
Width:

1.89 Inch / 48 Millimeter
