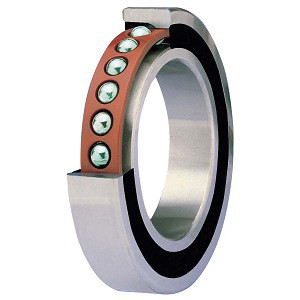

SKF S7018 ACDGA/P4A Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF S7018 ACDGA/P4A Precision Ball Bearing Specifications
-
Bore:3.543 Inch / 90 Millimeter
-
Brand:SKF
-
Cage Material:PEEK Resin
-
Category:Precision Ball Bearings
-
Contact Angle:25 Degree
-
EAN:7316573469797
-
Enclosure Type:Non Contact Seal
-
Enclosure:2 Seals
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:90MM Bore; 140MM Outside Diameter; 24MM Width; 2 Seals Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 1 (Single) Bearing; 25 Degree Contact Angle; PEEK Resin Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:S7018 ACDGA/P4A
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Universal
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Single Row / Angular Contact / Super Precision / High Capacity Basic Design
-
Outside Diameter:5.512 Inch / 140 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Extra Light
-
Raceway Style:1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:1.22
-
Weight / LBS:2.69
-
Width:0.945 Inch / 24 Millimeter
