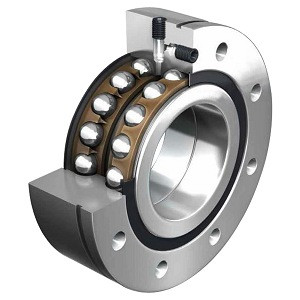

Images may not be exact. Please refer to Part # and Description.
Specifications
| Bore | 2.953 Inch / 75 Millimeter |
|---|---|
| Brand | SKF |
| Cage Material | Phenolic |
| Category | Precision Ball Bearings |
| Contact Angle | 15 Degree |
Need Some Help?
Get real service from real people, that know the products!
Monday - Friday
5:00am - 5:00pm PST
Frequently Ordered Together
Specs
- Bore:
- 2.953 Inch / 75 Millimeter
- Brand:
- SKF
- Cage Material:
- Phenolic
- Category:
- Precision Ball Bearings
- Contact Angle:
- 15 Degree
- EAN:
- 7316575947798
- Enclosure Type:
- Non Contact Seal
- Enclosure:
- 2 Seals
- Flush Ground:
- No
- Harmonized Tariff Code:
- 8482.10.50.28
- Inch - Metric:
- Metric
- Keyword String:
- Ball Angular Contact
- Long Description:
- 75MM Bore; 115MM Outside Diameter; 20MM Width; 2 Seals; ISO P4; Single; Phenolic Cage
- Manufacturer Item Number:
- S7015 CD/P4A
- Manufacturer Name:
- SKF
- Manufacturer URL:
- http://www.skf.com"
- Material - Ball:
- Steel
- Noun:
- Bearing
- Number of Bearings:
- 1 (Single)
- Other Features:
- Single Row / Angular Contact / Super Precision
- Outside Diameter:
- 4.528 Inch / 115 Millimeter
- Precision Class:
- ABEC 7 / ISO P4
- Preload:
- None
- Raceway Style:
- 1 Rib Outer Ring
- Rolling Element:
- Ball Bearing
- UNSPSC:
- 31171531
- Weight / Kilogram:
- 0.67
- Weight / LBS:
- 1.367
- Width:
- 0.787 Inch / 20 Millimeter
