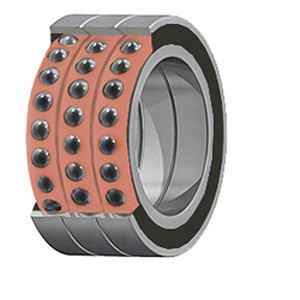

SKF S7013 ACE/HCP4ATBTL Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF S7013 ACE/HCP4ATBTL Precision Ball Bearing Specifications
-
Bore:2.559 Inch / 65 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:25 Degree
-
EAN:7316575994020
-
Enclosure Type:Non Contact Seal
-
Enclosure:2 Seals
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:65MM Bore; 100MM Outside Diameter; 54MM Width; 2 Seals; ISO P4; Triplex; Phenolic Cage
-
Manufacturer Item Number:S7013 ACE/HCP4ATBTL
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Ceramic
-
Mounting Arrangement:Triplex-Tandem and Back to Back
-
Noun:Bearing
-
Number of Bearings:3 (1 Triplex Set)
-
Other Features:Single Row / Angular Contact / Super Precision / Corrosion Resistant Ball
-
Outside Diameter:3.937 Inch / 100 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Light
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:1.31
-
Weight / LBS:2.778
-
Width:2.126 Inch / 54 Millimeter
