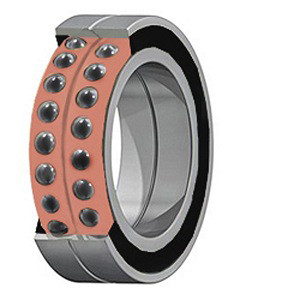

SKF S7009 FB/HCP4ADGA Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF S7009 FB/HCP4ADGA Precision Ball Bearing Specifications
-
Bore:1.772 Inch / 45 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:18 Degree
-
EAN:7316574504749
-
Enclosure Type:Non Contact Seal
-
Enclosure:2 Seals
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:45MM Bore; 75MM Outside Diameter; 32MM Width; 2 Seals Enclosure; ABEC 7 / ISO P4 Precision; Ceramic Ball Material; 2 (1 Pair) Bearings; 18 Degree Contact Angle; Phenolic Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:S7009 FB/HCP4ADGA
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Ceramic
-
Mounting Arrangement:Duplex-Universal
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / High Capacity Basic Design
-
Outside Diameter:2.953 Inch / 75 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Light
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.57
-
Weight / LBS:1.261
-
Width:1.26 Inch / 32 Millimeter
