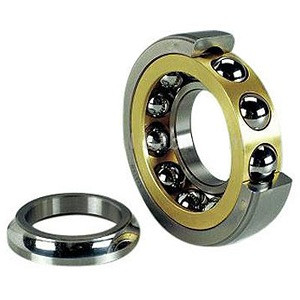

SKF QJ 226 N2MA/C3 Angular Contact Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF QJ 226 N2MA/C3 Angular Contact Ball Bearing Specifications
-
Bore:5.118 Inch / 130 Millimeter
-
Brand:SKF
-
Cage Material:Brass
-
Category:Angular Contact Ball Bearings
-
Contact Angle:35 Degree / 4 Point
-
EAN:7316577295767
-
Enclosure:Open
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Internal Clearance:C3-Loose
-
Keyword String:Angular Contact
-
Long Description:130MM Bore; 230MM Outside Diameter; 40MM Width; Open; No Flush Ground; Ball Bearing; Single Row of Balls; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; C3-Loose; Brass Cage; 35 Degree / 4 Point; 1 (Single)
-
Manufacturer Item Number:QJ 226 N2MA/C3
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Maximum Capacity / Filling Slot:No
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Number of Rows of Balls:Single Row
-
Other Features:Split Inner Race / Outer Ring Centred / Two Locating Slots
-
Outside Diameter:9.055 Inch / 230 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
Snap Ring:No
-
UNSPSC:31171531
-
Weight / Kilogram:7.438
-
Weight / LBS:17.08581
-
Width:1.575 Inch / 40 Millimeter
