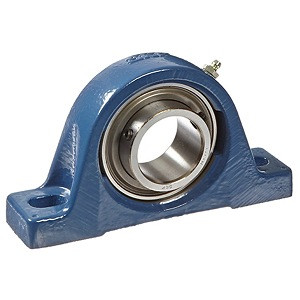

SKF P2B 30M TF Pillow Block Bearing

Specs

Base to Center Height:

1.689 Inch / 42.9 Millimeter

Bolt Spacing Maximum:

5.063 Inch / 128.6Millimeter

Bolt Spacing Minimum:

4.375 Inch / 111.125Millimeter

Bore:

1.181 Inch / 30 Millimeter

Brand:

SKF

Category:

Pillow Block Bearings

EAN:

7316577343918

Expansion / Non-expansion:

Non-Expansion

Harmonized Tariff Code:

8483.20.80.40

Housing Configuration:

1 Piece Solid

Housing Material:

Cast Iron

Housing Style:

2 Bolt Pillow Block

Inch - Metric:

Metric

Insert Part Number:

YAR 206-2F

Keyword String:

Pillow Block

Length Thru Bore:

1.5 Inch / 38.1 Millimeter

Long Description:

2 Bolt Pillow Block; 30MM Bore; 42.9MM Base to Center Height; Set Screw Mount; Ball Bearing; 111.125MM Minimum Bolt Spacing; 128.6MM Maximum Bolt Spacing; Relubricatable; Cast Iron; M Seal; Non-Expansion

Manufacturer Name:

SKF

Manufacturer URL:

http://www.skf.com"

Mounting Bolts:

1/2 Inch

Mounting Method:

Set Screw

Nominal Bolt Center to Center:

4.7 Inch / 119 Millimeter

Noun:

Bearing

Number of Mounting Holes:

2

Other Features:

Single Row / Spherical / Standard Duty / Wide Inner Ring / Has Flinger

Relubricatable:

Yes

Rolling Element:

Ball Bearing

Seals:

M Seal

UNSPSC:

31171511

Weight / Kilogram:

1.12

Weight / LBS:

2.6
