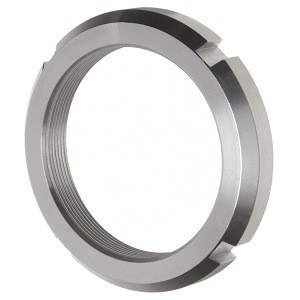

SKF N 30

  • SKUVL19VR
  • Brand
  • Manufacturer Part #N 30
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$269.40

SKF N 30 Specifications

  • EAN or UPC:
    7316576666780
  • Face Diameter:
    7.063 in
  • Face Runout [MAX]:
    0.006 in
  • Grade:
    Standard
  • Locking Type:
    Not Self-Locking
  • Locknut Series:
    N Series
  • Lockwasher Series:
    W Series
    TW Series
  • Material:
    Steel
  • Mating Lockwasher:
    W30
  • O.D.:
    7 1/8 in
  • Right / Left Hand:
    Right Hand
  • Shaft Dia.:
    150 mm
  • Shaft Threads Major Diameter [MAX]:
    5.888 in
  • Shaft Threads Major Diameter [MIN]:
    5.8768 in
  • Slot Depth [MAX]:
    0.26 in
  • Slot Width [MIN]:
    0.61 in
  • Thickness:
    31/32 in
  • Thread Pitch:
    N/A
  • Thread Size:
    M150
  • Threads per Inch:
    11
  • Weight:
    4.363 LB
