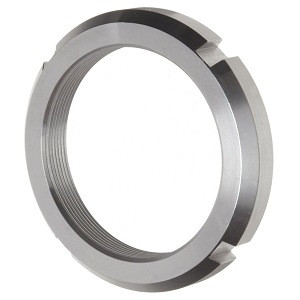

SKF N 21

  • SKUZO16IT
  • Brand
  • Manufacturer Part #N 21
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$97.13

SKF N 21 Specifications

  • EAN or UPC:
    7316576666735
  • Face Diameter:
    5 in
  • Face Runout [MAX]:
    0.004 in
  • Grade:
    Standard
  • Locking Type:
    Not Self-Locking
  • Locknut Series:
    N Series
  • Lockwasher Series:
    W Series
    TW Series
  • Material:
    Steel
  • Mating Lockwasher:
    W21
  • O.D.:
    5 7/16 in
  • Right / Left Hand:
    Right Hand
  • Shaft Dia.:
    105 mm
  • Shaft Threads Major Diameter [MAX]:
    4.122 in
  • Shaft Threads Major Diameter [MIN]:
    4.1108 in
  • Slot Depth [MAX]:
    0.198 in
  • Slot Width [MIN]:
    0.485 in
  • Thickness:
    3/4 in
  • Thread Pitch:
    N/A
  • Thread Size:
    M105
  • Threads per Inch:
    11
  • Weight:
    1.817 LB
