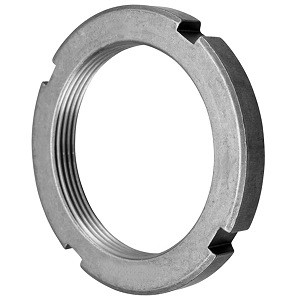

SKF KM 36 Lock Nuts

  • SKUKF90HN
  • Brand
  • Manufacturer Part #KM 36
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$459.75

SKF KM 36 Lock Nuts Specifications

  • Brand:
    SKF
  • Category:
    Lock Nuts
  • EAN:
    7316577011336
  • Inch - Metric:
    Metric
  • Lockwasher/Lockplate Part Number:
    MB-36
  • Long Description:
    230MM Outside Diameter; 27MM Nominal Thickness; M180 X 3 Thread Size; 178.051MM Thread Pitch Diameter Min; 178.242MM Thread Pitch Diameter Max; MB-36 Lockwasher Part Number; ISO Metric Thread
  • Manufacturer Name:
    SKF
  • Nominal Thickness:
    1.063 Inch / 27 Millimeter
  • Outside Diameter:
    9.055 Inch / 230 Millimeter
  • Thread Name:
    ISO Metric
  • Thread Pitch Diameter Max:
    7.017 Inch / 178.242 Millimeter
  • Thread Pitch Diameter Min:
    7.01 Inch / 178.051 Millimeter
  • Thread Size:
    M180 X 3
  • Threads per Inch:
    Metric
  • UNSPSC:
    31161716
  • Weight / Kilogram:
    2.78
