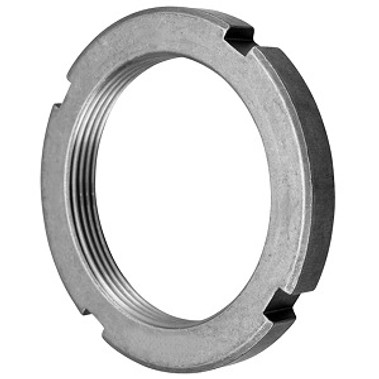

SKF KM 28 Lock Nuts

  • SKUCT30JP
  • Brand
  • Manufacturer Part #KM 28
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$253.06

SKF KM 28 Lock Nuts Specifications

  • Brand:
    SKF
  • Category:
    Lock Nuts
  • EAN:
    7316577011268
  • Inch - Metric:
    Metric
  • Lockwasher/Lockplate Part Number:
    MB-28
  • Long Description:
    180MM Outside Diameter; 22MM Nominal Thickness; M140 X 2 Thread Size; 138.701MM Thread Pitch Diameter Min; 138.861MM Thread Pitch Diameter Max; MB-28 Lockwasher Part Number; ISO Metric Thread
  • Manufacturer Name:
    SKF
  • Nominal Thickness:
    0.866 Inch / 22 Millimeter
  • Outside Diameter:
    7.087 Inch / 180 Millimeter
  • Thread Name:
    ISO Metric
  • Thread Pitch Diameter Max:
    5.467 Inch / 138.861 Millimeter
  • Thread Pitch Diameter Min:
    5.461 Inch / 138.701 Millimeter
  • Thread Size:
    M140 X 2
  • Threads per Inch:
    Metric
  • UNSPSC:
    31161716
  • Weight / Kilogram:
    1.4
