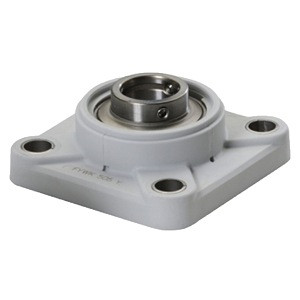

SKF FYWK 35 YTH Flange Block Bearing

Specs

Bolt Spacing:

3.622 Inch / 92 Millimeter

Bore:

1.378 Inch / 35 Millimeter

Brand:

SKF

Cartridge Pilot Diameter:

0 Inch / 0 Millimeter

Category:

Flange Block Bearings

EAN:

7316574919734

Expansion / Non-expansion:

Non-Expansion

Harmonized Tariff Code:

8483.20.40.40

Housing Configuration:

1 Piece Solid

Housing Material:

Glass Reinforced Thermoplastic

Housing Style:

4 Bolt Square Flange Block

Inch - Metric:

Metric

Insert Part Number:

YAR 207-2RF/HV

Keyword String:

Flanged

Length Thru Bore:

1.689 Inch / 42.9 Millimeter

Long Description:

4 Bolt Square Flange Block; 35MM Bore; 130MM Bolt Circle; 92MM Bolt Spacing; 1 Piece Solid; Set Screw Mount; Glass Reinforced Thermoplastic; Ball Bearing; 42.9MM Length Thru Bore; No Relubricatable; Trigard Seal

Manufacturer Name:

SKF

Manufacturer URL:

http://www.skf.com"

Mounting Bolts:

12 Millimeter

Mounting Method:

Set Screw

Nominal Bolt Circle Diameter Round:

5.1 Inch / 130 Millimeter

Noun:

Bearing

Number of Mounting Holes:

4

Other Features:

Single Row

Pilot Configuration:

No Pilot

Relubricatable:

No

Rolling Element:

Ball Bearing

Seals:

Trigard

UNSPSC:

31171501

Weight / Kilogram:

0

Weight / LBS:

1.72
