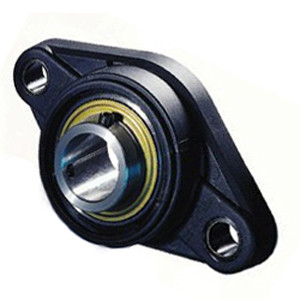

SKF FYTBK 20 TF Flange Block Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF FYTBK 20 TF Flange Block Bearing Specifications
-
Bolt Spacing:3.543 Inch / 90 Millimeter
-
Bore:0.787 Inch / 20 Millimeter
-
Brand:SKF
-
Cartridge Pilot Depth:0 Inch / 0 Millimeter
-
Cartridge Pilot Diameter:0 Inch / 0 Millimeter
-
Category:Flange Block Bearings
-
EAN:7316570398168
-
Expansion / Non-expansion:Non-expansion
-
Harmonized Tariff Code:8483.20.40.40
-
Housing Configuration:1 Piece Solid
-
Housing Material:Composite
-
Housing Style:2 Bolt Flange Block
-
Inch - Metric:Metric
-
Insert Part Number:YAR 204-2F
-
Keyword String:Flanged
-
Length Thru Bore:1.22 Inch / 31 Millimeter
-
Long Description:2 Bolt Flange Block; 20MM Bore; 90MM Bolt Circle; 90MM Bolt Spacing; 1 Piece Solid; Set Screw Mount; Composite; Ball Bearing; 31MM Length Thru Bore; Relubricatable; M Seal Seals
-
Manufacturer Item Number:FYTBK 20 TF
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Mounting Bolts:10 Millimeter
-
Mounting Method:Set Screw
-
Nominal Bolt Circle Diameter Round:3.5 Inch / 90 Millimeter
-
Noun:Bearing
-
Number of Mounting Holes:2
-
Other Features:Single Row / Y Tech Housing / Stainless Steel Insert
-
Pilot Configuration:No Pilot
-
Relubricatable:Yes
-
Rolling Element:Ball Bearing
-
Seals:M Seal
-
UNSPSC:31171501
-
Weight / Kilogram:0.24
-
Weight / LBS:0.529
