SKF

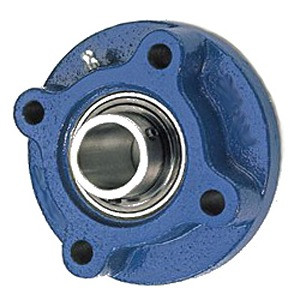

SKF FYC 50 TF Flange Block Bearing

MFG Part #
FYC 50 TF
SKU#
PR46SZ

Specifications

Bolt Spacing3.843 Inch / 97.6 Millimeter
Bore1.969 Inch / 50 Millimeter
BrandSKF
Cartridge Pilot Depth0.472 Inch / 12 Millimeter
Cartridge Pilot Diameter4.331 Inch / 110 Millimeter
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bolt Spacing:
3.843 Inch / 97.6 Millimeter
Bore:
1.969 Inch / 50 Millimeter
Brand:
SKF
Cartridge Pilot Depth:
0.472 Inch / 12 Millimeter
Cartridge Pilot Diameter:
4.331 Inch / 110 Millimeter
Category:
Flange Block Bearings
EAN:
7316570895216
Expansion / Non-expansion:
Non-Expansion
Harmonized Tariff Code:
8483.20.40.40
Housing Configuration:
1 Piece Solid
Housing Material:
Cast Iron
Housing Style:
4 Bolt Round Flange Cartridge
Inch - Metric:
Metric
Insert Part Number:
YAR 210-2F
Keyword String:
Flanged
Length Thru Bore:
2.031 Inch / 51.6 Millimeter
Long Description:
4 Bolt Round Flange Cartridge; 50MM Bore; 138MM Bolt Circle; 97.6MM Bolt Spacing; 1 Piece Solid; Set Screw Mount; Cast Iron; Ball Bearing; 51.6MM Length Thru Bore; Relubricatable; M Seal
Manufacturer Name:
SKF
Manufacturer URL:
http://www.skf.com"
Mounting Bolts:
16 Millimeter
Mounting Method:
Set Screw
Nominal Bolt Circle Diameter Round:
5.4 Inch / 138 Millimeter
Noun:
Bearing
Number of Mounting Holes:
4
Other Features:
Single Row
Pilot Configuration:
With Pilot
Relubricatable:
Yes
Rolling Element:
Ball Bearing
Seals:
M Seal
UNSPSC:
31171501
Weight / Kilogram:
2.759
Weight / LBS:
6.669
$180.24
