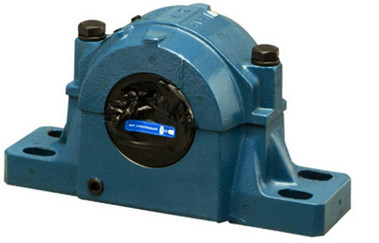

SKF FSAFD 515

Images may not be exact. Please refer to Part # and Description.

SKF

SKF FSAFD 515

MFG Part #
FSAFD 515
SKU#
AY85BI

Specifications

Base to Bore Centerline3.2500 in
Base Width3-1/8 in
Bolt Center-to-Center Length9-5/8 in
Compatible Bearing Series/Part Number22215 EK, 1215 K, 2215 K, C2215 K
Compatible Bore Diameter2.5000 in, 2.4375 in
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Base to Bore Centerline:
3.2500 in
Base Width:
3-1/8 in
Bolt Center-to-Center Length:
9-5/8 in
Compatible Bearing Series/Part Number:
22215 EK, 1215 K, 2215 K, C2215 K
Compatible Bore Diameter:
2.5000 in, 2.4375 in
Finish/Coating:
Uncoated
Housing Construction:
Split Pillow Block
Housing Material:
Ductile Iron
Inside Diameter:
2.5000 in, 2.4375 in
Mounting:
Four-Bolt Base
Overall Height:
6.3750 in
Overall Length:
11.2500 in
Overall Width:
7.7500 in
Series:
FSAFD
Standards Met:
ASTM A536 Grade 65-45-12
Weight:
22.56 lbs
