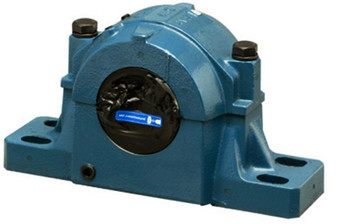

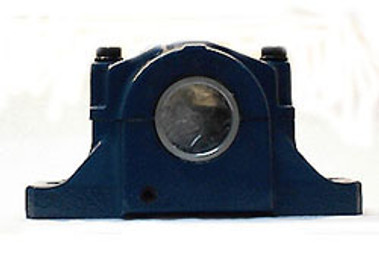

SKF FSAF 520

  • SKUZY28VC
  • Brand
  • Manufacturer Part #FSAF 520
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$575.78

SKF FSAF 520 Specifications

  • Base to Bore Centerline:
    4.5000 in
  • Base Width:
    4-3/8 in
  • Bolt Center-to-Center Length:
    13-1/8 in
  • Compatible Bearing Series/Part Number:
    1220 K, 22220 EK, C2220 EK
  • Compatible Bearing Type:
    Spherical Roller, Self-Aligning Ball
  • Compatible Bore Diameter:
    3.5000 in
  • Finish/Coating:
    Uncoated
  • Housing Construction:
    Split Pillow Block
  • Housing Material:
    Cast Iron
  • Includes:
    (2) LOR 102 Aluminum Labyrinth Triple Seal Rings
  • Inside Diameter:
    3.5000 in
  • Mounting:
    Four-Bolt Base
  • Overall Height:
    8.5000 in
  • Overall Length:
    15.2500 in
  • Overall Width:
    6.1250 in
  • Series:
    FSAF
  • Standards Met:
    ASTM A48 Grade 35
  • Weight:
    47.41 lbs
